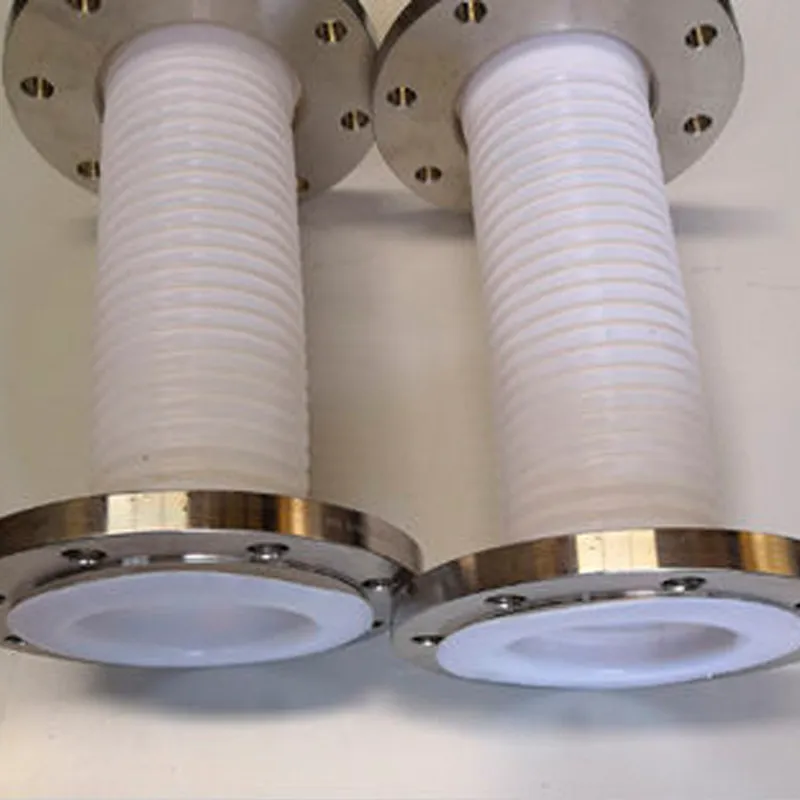

PTFE Bellow: field notes, specs, and what buyers really ask

If you’ve handled corrosive media or twitchy pump alignment, you’ve probably wondered whether ptfe bellows are worth the switch from elastomers or metal. Short answer: often yes. Long answer (the one procurement teams want): it depends on temperature, cycling, and how tidy your install is. In fact, in the last 18 months we’ve seen a noticeable shift toward PTFE bellows for pharma transfer lines and boutique chemical skids, thanks to stricter purity audits and—let’s be honest—fewer maintenance headaches.

Why engineers pick them

The headline benefits are chemical inertness and temperature range (≈ −200 to +260°C). ptfe bellows absorb vibration, compensate misalignment, and resist permeation better than most elastomers. Many customers say the biggest surprise is how stable torque/actuation remains after thousands of cycles—because PTFE doesn’t embrittle the way some rubbers do under hot caustics.

Typical applications

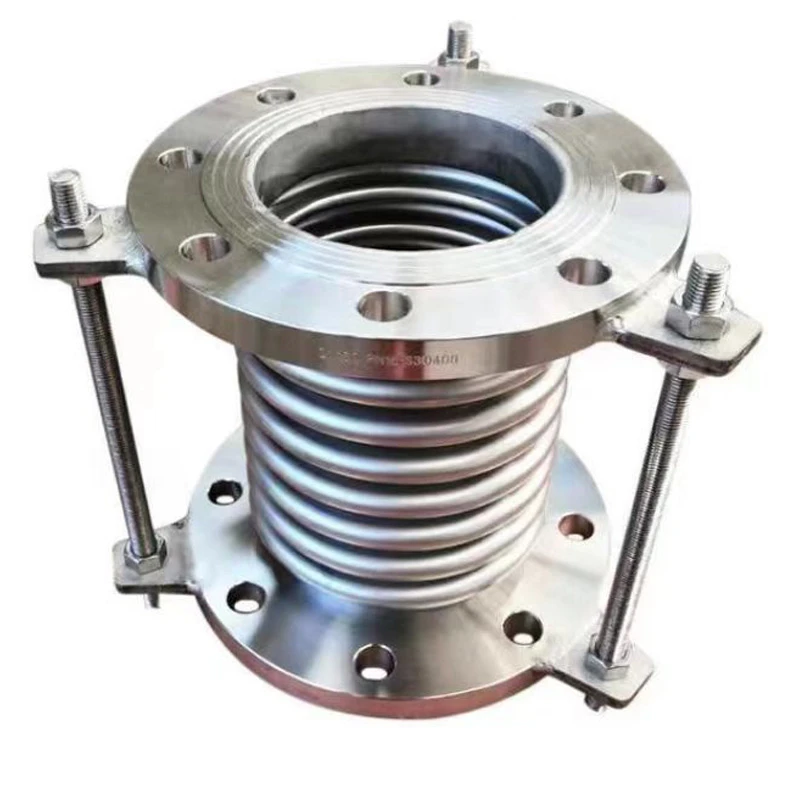

• Pump/valve stem protection, chemical dosing skids, expansion joints
• Pharma transfer lines, CIP/SIP loops (non-stick helps cleaning)
• Semiconductor wet benches, high-purity acid lines
• Food & beverage flavor lines; pulp & paper bleach systems

At-a-glance specifications

How they’re made (and tested)

Material starts as ASTM D4894 PTFE resin. Depending on size, we’ll use paste extrusion or isostatic molding, then sinter and CNC-machine the convolutions. Filled grades are blended for wear or stiffness. Quality control: tensile per ASTM D638, density per ASTM D792, visual/porosity checks, and helium leak tests (≤1×10⁻⁶ mbar·L/s per ISO 20485) on request. Hydrostatic proof tests and 100% dimensional inspection are common. Typical service life? Around 1–3 million cycles in moderate stroke, with clean install and proper guides.

Vendor snapshot (what buyers compare)

Customization checklist

• Convolution count and pitch (set movement vs. stiffness)
• Wall thickness 1–5 mm depending on pressure/temperature
• Virgin vs. filled PTFE; surface finish for cleanability
• End connections: cuff/flange/tri-clamp; grounding for static

Mini case studies

1) Specialty chemicals: Replaced EPDM joints on a 25% NaOH line; leak rate dropped below detection ( 2) Pharma syrup line: Switched to ptfe bellows with tri-clamp ends; CIP time fell ≈15% thanks to non-stick interiors; no extractables seen in QC swabs (USP VI-grade material).

Standards and documentation buyers ask for

Material certs (FDA 21 CFR 177.1550), USP Class VI test reports, RoHS/REACH declarations, and—when expansion is critical—calcs per EJMA principles adapted for polymer bellows. For lined systems, some spec ASTM F1545 references. I guess the simple rule is: match the doc set to your audit trail.

References:
[1] ASTM D4894 – PTFE resin specification
[2] FDA 21 CFR 177.1550 – Perfluorocarbon resins for food contact
[3] USP (Class VI) – Biological reactivity tests
[4] ISO 20485 – Non-destructive testing: leak detection with tracer gas
[5] ASTM F1545 – Standard for PTFE-lined piping systems
