Why a [PTFE Lined Tank] keeps showing up on serious spec sheets

If you store acids, alkalis, or awkward organics, you already know: steel alone won’t cut it. Over the last few years I’ve toured plants from battery materials to pharma, and the kit that rarely fails the audit is the PTFE Lined Tank. It’s not hype. It’s a pragmatic response to stricter EH&S rules, ESG reporting, and the rising cost of downtime. Also, operators like that PTFE doesn’t stick; cleanouts are quicker—many customers say that alone pays back faster than they expected.

What’s trending

We’re seeing broader chemical envelopes, leak detection ports, and smarter vents. Some plants are adding IIoT corrosion monitors on nozzles—nice to have. But the backbone remains a carbon steel shell with PTFE lining (sometimes PE, rubber, or PU when chemistry is friendlier). Frankly, PTFE is the “sleep at night” option for mixed-acid duty and solvent swings.

Typical specifications (field-proven, not lab fantasy)

Where they’re used

Chemicals (HCl, H2SO4, HF—yes, carefully), chlor-alkali, battery-grade electrolyte, semiconductor wet benches (bulk storage), pharma intermediates, edible oil refining (aggressive CIP), and mixed-waste pits. In fact, I’ve seen PTFE Lined Tank setups tame hot phosphoric acid that ate rubber-lined vessels in a year.

How they’re built (process flow)

• Material prep: plate forming/welding to drawing; welds dressed. Blast to ISO 8501-1 Sa 2.5.

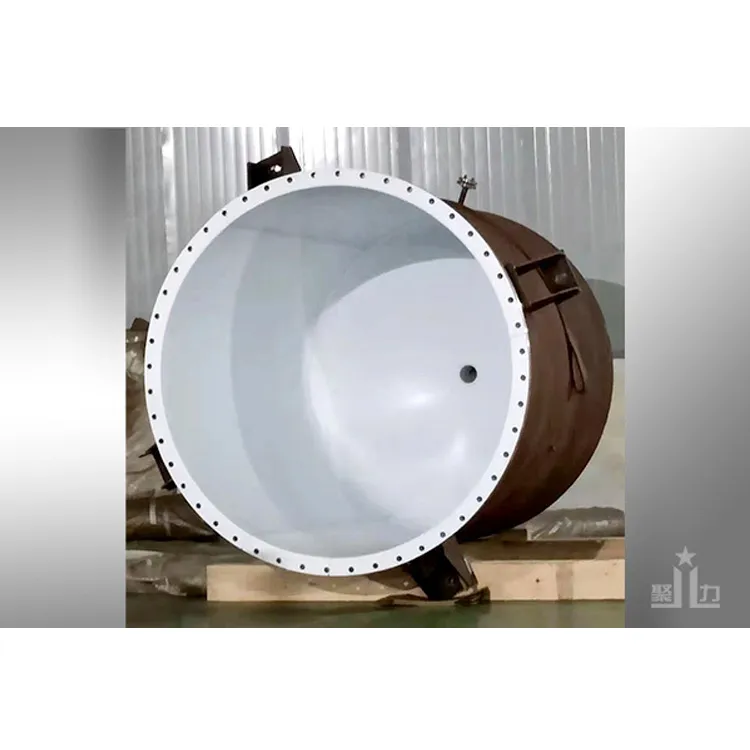

• Lining method: stud-weld anchors, PTFE sheet forming, seam welding; complex nozzles pre-lined.
• QA checks: thickness mapping, spark test 15 kV, vacuum box on seams, hydrostatic as required.
• Documentation: MTRs, WPS/PQR, holiday test logs, as-built drawings.
• Final: packaging and transport from Yuqiao Village, Jingxin Street, Jing County, Hengshui City, Hebei Province.

Quick datapoint: on a recent unit, permeation under 60 °C HCl was negligible over a 72‑hour soak; no holidays detected at 15 kV. I guess that’s why maintenance signed it off without a fuss.

Vendor snapshot (shortlist view)

Customization that actually helps

Ask for: heating/cooling coils, dip pipes, anti-swirl baffles, top-mounted agitator pads, PTFE-lined sight glass, grounding lugs, and a double-seal manway. For solvent service, specify a nitrogen pad and flame arrestor. For sticky slurries, a cone bottom with flush PTFE outlet is a quiet productivity win.

Field note: quick case

A battery-electrolyte site swapped two rubber-lined tanks for a PTFE Lined Tank. HF traces at 60 °C had caused blistering every 10–14 months. The PTFE unit ran 18 months with zero holidays on re-test; CIP water use dropped ~22% thanks to the non-stick surface. Not flashy—just fewer headaches.

Standards and references

1. ASTM D5162 – Standard Practice for Discontinuity (Holiday) Testing of Nonconductive Coatings.
2. NACE SP0188 – Discontinuity Testing of New Protective Coatings on Conductive Substrates.
3. ISO 8501-1 – Preparation of steel substrates before application of paints and related products.
4. API 650 – Welded Tanks for Oil Storage (hydrostatic/leak testing guidance for atmospheric tanks).
5. ASME Boiler and Pressure Vessel Code, Section VIII, Div. 1 – Pressure Vessels (when applicable).
6. 21 CFR 177.1550 – Perfluorocarbon resins (PTFE) for food-contact applications.
