Advanced Corrosion Protection: The Efficacy of Rubber Lined Tanks in Industrial Applications

In demanding industrial environments, particularly those involving corrosive or abrasive media, the integrity and longevity of containment vessels are paramount. Traditional tanks fabricated from plain carbon steel or even certain stainless steels often fall short in the face of aggressive chemicals, leading to premature failure, costly downtime, and significant safety risks. This is where the engineered solution of a Rubber Lined Tank emerges as a critical component, offering unparalleled protection and extended service life.

The market for specialized industrial equipment, including advanced storage and processing vessels, is experiencing robust growth driven by stringent environmental regulations, increasing operational demands, and a heightened focus on asset protection across sectors. Industry trends indicate a sustained demand for durable, chemical-resistant solutions in the petrochemical, mining, water treatment, and chemical manufacturing sectors. The emphasis is shifting towards materials and designs that promise lower total cost of ownership through reduced maintenance, extended operational cycles, and enhanced safety compliance. Innovations in rubber compounding and bonding technologies continue to push the boundaries of performance, allowing these tanks to withstand more extreme temperatures, pressures, and corrosive agents than ever before. This evolution underscores the strategic importance of investing in reliable, expertly engineered containment solutions.

Technical Specifications and Design Principles of High-Performance Tanks

The foundation of a high-performance Rubber Lined Tank lies in its meticulous design and the careful selection of both the substrate and the lining material. Typically, the primary shell is constructed from robust carbon steel, designed according to international standards such as ASME Boiler and Pressure Vessel Code (BPVC) Section VIII, ensuring structural integrity under various operating conditions. The internal rubber lining acts as a barrier, isolating the metallic shell from the aggressive contents.

Key technical parameters include volume capacity (ranging from a few cubic meters to thousands), design pressure (atmospheric to several MPa), and operating temperature (typically -20°C to +100°C, depending on the rubber compound). Crucially, chemical compatibility is assessed against the specific media to be contained, considering factors like pH, concentration, and temperature to select the optimal rubber polymer.

Typical Product Specifications for a Medium-Volume Rubber Lined Tank

Understanding these specifications is crucial for specifying the correct Rubber Lined Tank for any given process. Our engineering team leverages advanced material science and finite element analysis (FEA) to ensure optimal design and performance.

Precision Manufacturing Process Flow for Rubber Lined Tanks

The production of a high-quality Rubber Lined Tank is a sophisticated multi-stage process, demanding precision, specialized equipment, and stringent quality control at every step. This ensures optimal adhesion, integrity, and performance of the rubber lining.

Manufacturing Process Steps:

1. 1. Shell Fabrication & Material Selection:

• Design & Engineering: Detailed CAD drawings and stress analysis.
• Material: High-grade carbon steel (e.g., ASTM A516 Gr.70) or stainless steel, selected for structural integrity and weldability. Plates are cut, rolled, and welded using certified procedures (e.g., ASME Section IX welding qualifications).
• Processes: CNC machining for precision cutting, hydraulic rolling for shell formation, automated welding for strong, consistent seams.

• Cleaning: Removal of all contaminants (grease, oil, rust, mill scale).
• Abrasive Blasting: Typically to Sa 2.5 or Sa 3.0 (NACE No. 1 or SSPC-SP 5 White Metal Blast Cleaning) to achieve an anchor profile, crucial for mechanical adhesion.
• Inspection: Surface roughness and cleanliness checks (e.g., using a replica tape and profilometer) to meet ISO 8501-1 standards.

• Primer Coat: Application of a corrosion-resistant primer immediately after blasting to prevent flash rust.
• Adhesive Coats: Multiple layers of specialized rubber adhesives are applied, often by spray or brush, allowing for appropriate flash-off times between coats.

• Material Selection: Uncured rubber sheets (Natural Rubber, Butyl, EPDM, Neoprene, etc.) are chosen based on chemical resistance and temperature requirements.
• Lining Process: Skilled technicians meticulously cut and fit rubber sheets onto the tank interior, overlapping seams and applying pressure to ensure no air entrapment. Complex geometries, nozzles, and internal fittings require intricate hand-craftsmanship.

• Autoclave Curing: For most applications, the tank is placed in a large autoclave where heat and pressure are applied for a specified duration, transforming the uncured rubber into a durable, elastic, chemically resistant material.
• Open Steam Curing: For very large tanks or field applications, steam is introduced directly into the tank.
• Atmospheric/Hot Air Curing: Less common, but used for specific rubber types or applications.

• Spark Testing (Holiday Detection): A high-voltage spark tester is run over the entire rubber surface to detect pinholes or imperfections that could compromise the lining. This is a critical test, often performed to NACE RP0178 standards.
• Adhesion Testing: Destructive tests on sample coupons or non-destructive pull-off tests (where applicable) to verify bond strength.
• Thickness Measurement: Ensures uniform lining thickness.
• Visual Inspection: Comprehensive check for defects, blisters, or delamination.
• Pressure Testing: Hydrostatic or pneumatic testing of the shell as per ASME standards before and after lining.

Detailed craftsmanship is essential in the application of rubber lining to ensure complete surface coverage and adhesion.

This rigorous process ensures a durable and reliable Rubber Lined Tank with an exceptional service life, often exceeding 15-20 years in typical applications. These tanks are critical in target industries such as petrochemicals, metallurgy, and water supply & drainage, offering advantages like energy saving (by preventing heat loss through the shell in some applications) and superior corrosion resistance, significantly reducing maintenance cycles and operational costs.

Versatile Application Scenarios and Target Industries

The inherent properties of a Rubber Lined Tank—primarily its resistance to a wide array of chemicals and abrasive slurries—make it an indispensable asset across numerous heavy industries. Its adaptability allows for safe and efficient handling of hazardous and corrosive materials, extending the lifespan of critical infrastructure and ensuring operational continuity.

Primary Target Industries and Applications:

• Petrochemical and Chemical Processing: Essential for storing and processing strong acids (e.g., hydrochloric acid, sulfuric acid, phosphoric acid), alkalis, and various organic solvents. Applications include acid storage tanks, reactor vessels, mixing tanks, and pipelines in facilities producing fertilizers, plastics, and industrial chemicals. The lining prevents corrosive attack, protecting the steel shell and ensuring product purity.
• Mining and Mineral Processing: Heavily utilized in mineral extraction where abrasive slurries and aggressive leaching agents are common. This includes leaching tanks, agitator tanks, slurry sumps, flotation cells, and thickeners. The rubber lining provides excellent resistance to both chemical corrosion and mechanical abrasion from mineral particles, significantly extending equipment life in highly demanding operations.
• Water Supply & Drainage / Wastewater Treatment: Crucial for handling aggressive wastewater streams containing various chemical pollutants and biological agents. Applications include clarifiers, flocculation tanks, neutralization tanks, and sludge storage. The lining ensures the structural integrity of treatment infrastructure against continuous chemical exposure, supporting environmental compliance.
• Power Generation: Used in flue gas desulfurization (FGD) systems where scrubbers and absorption towers handle highly corrosive sulfur dioxide solutions. Also applicable in demineralized water tanks and cooling water systems.
• Pulp and Paper Industry: For processes involving bleach, pulping chemicals, and other corrosive liquors, ensuring the durability of storage and processing vessels.

In these scenarios, the inherent advantages of a Rubber Lined Tank are vividly demonstrated. Beyond unparalleled corrosion resistance, these tanks offer superior abrasion resistance against particulate matter, thermal insulation properties that can contribute to energy saving, and reduced maintenance costs due to extended operational cycles. This translates directly to enhanced operational efficiency, improved safety, and a significantly lower total cost of ownership compared to alternative materials or frequent replacements.

Technical Advantages and Performance Metrics

The selection of a Rubber Lined Tank over other material solutions is driven by a distinct set of technical advantages that directly impact operational efficiency, safety, and economic viability. These advantages are particularly pronounced in environments where extreme chemical aggression or mechanical wear are prevalent.

Key Advantages:

• Superior Corrosion Resistance: Rubber linings offer exceptional resistance to a vast spectrum of corrosive chemicals, including strong acids, alkalis, salts, and various organic compounds, where even high-alloy metals might fail. This extends the service life of the tank significantly.
• Excellent Abrasion Resistance: Especially with specific rubber types like natural rubber, these linings can withstand the erosive effects of abrasive slurries containing solid particles, a critical factor in mining and mineral processing.
• Thermal Insulation Properties: Rubber acts as an insulative layer, helping to maintain desired internal temperatures and reducing heat transfer. This can contribute to energy saving, especially for processes requiring stable temperatures.
• Impact Dampening: The elastic nature of rubber can absorb minor impacts, providing an additional layer of protection to the steel shell against mechanical damage.
• Reduced Maintenance and Downtime: The extended service life and robust protection offered by the lining dramatically reduce the frequency of repairs and replacements, leading to significant cost savings and increased operational uptime.
• Safety Enhancement: By preventing leaks and catastrophic failures due to corrosion, rubber linings enhance safety for personnel and the environment, mitigating risks associated with hazardous chemical containment.

An expertly applied rubber lining is critical for the long-term protection of industrial processing equipment.

Performance metrics for Rubber Lined Tank systems are rigorously tested. For instance, bond strength between the rubber and steel substrate often exceeds 100 psi, while holiday detection typically guarantees zero pinholes exceeding 5,000 volts. These quantifiable standards, coupled with comprehensive material selection based on chemical resistance charts (e.g., ASTM D471, ISO 1817 for fluid immersion tests), ensure that the tank performs reliably under specified operational parameters.

Vendor Comparison and Selection Criteria for Rubber Lined Tanks

Choosing the right vendor for a Rubber Lined Tank is as critical as the tank's technical specifications. A vendor's capabilities directly influence the quality, reliability, and long-term performance of the investment. When evaluating potential suppliers, key criteria should guide the decision-making process.

Key Vendor Selection Criteria:

• Experience and Track Record: Look for vendors with a proven history of designing, fabricating, and lining tanks for your specific industry and application. Years of service and a portfolio of successful projects are strong indicators of reliability.
• Certifications and Quality Standards: Ensure the vendor adheres to international quality management systems (e.g., ISO 9001) and relevant industry-specific certifications (e.g., ASME for pressure vessels, NACE for corrosion control). This reflects a commitment to quality and safety.
• Engineering and Customization Capabilities: A reputable vendor should offer robust engineering support, capable of bespoke designs, material selection guidance, and performance optimization tailored to unique project requirements.
• Quality of Materials and Workmanship: Inquire about the source of steel, rubber compounds, and adhesives. Insist on rigorous quality control processes throughout fabrication and lining application, including comprehensive testing protocols (e.g., spark testing, adhesion tests).
• After-Sales Support and Warranty: Evaluate the vendor's commitment to post-purchase support, including installation assistance, maintenance guidance, and a clear, comprehensive warranty against defects.
• Safety and Environmental Compliance: Verify the vendor's adherence to all relevant health, safety, and environmental regulations in their manufacturing processes.

Comparative Analysis of Rubber Lining Types:

This comparison highlights the importance of matching the rubber compound to the specific chemical environment and operational parameters. An experienced vendor will possess the expertise to guide clients through this selection process, ensuring the optimal Rubber Lined Tank solution.

Customized Solutions and Engineering Capabilities

Standard Rubber Lined Tank designs may not always meet the unique and complex demands of specialized industrial processes. This necessitates a vendor with robust engineering capabilities to deliver fully customized solutions that integrate seamlessly into existing operations.

Our approach to customization begins with a comprehensive understanding of the client's specific requirements, including:

• Process Chemistry: Detailed analysis of the chemical composition, concentration, pH, and potential contaminants of the media.
• Operational Parameters: Design pressure, maximum and minimum operating temperatures, flow rates, and agitation requirements.
• Physical Constraints: Available footprint, height restrictions, accessibility for maintenance, and integration points with existing piping and equipment.
• Specific Industry Standards: Compliance with local and international codes (e.g., API 650, EN 14015, ATEX directives for hazardous areas).

Leveraging advanced design tools such as 3D CAD modeling and Finite Element Analysis (FEA), our engineering team can optimize tank geometry, nozzle placement, and support structures for maximum efficiency and longevity. This includes:

• Tailored Volumes and Dimensions: From small process tanks to large-scale storage vessels.
• Specialized Rubber Compounds: Developing or selecting specific rubber formulations (e.g., abrasion-resistant natural rubber, chemical-resistant butyl, high-temperature EPDM) to match precise chemical and thermal resistance needs.
• Internal Components: Designing custom baffles, agitator supports, heating/cooling coils, and other internal structures, all with integrated rubber lining to maintain integrity.
• External Coatings and Insulation: Applying external protective coatings or insulation for specific environmental conditions or energy efficiency requirements.
• Instrumentation and Access: Integrating custom manways, inspection ports, level indicators, and other instrumentation connections, all meticulously lined to prevent corrosion.

This commitment to customized solutions ensures that each Rubber Lined Tank is not merely a product but a purpose-built asset, engineered to deliver optimal performance and long-term value within its unique operational context.

Application Case Studies: Proving the Value of Rubber Lined Tanks

Real-world applications powerfully illustrate the efficacy and economic benefits of investing in a high-quality Rubber Lined Tank. These case studies demonstrate how tailored solutions address critical challenges across diverse industrial sectors.

Case Study 1: Chemical Processing Facility – Acid Storage

• Challenge: A major chemical plant faced recurring failures in their steel storage tanks for 35% hydrochloric acid, leading to annual maintenance, frequent replacements, and safety concerns.
• Solution: We designed and supplied a series of 50 m³ Rubber Lined Tanks using hard natural rubber lining, specifically engineered for concentrated HCl at ambient temperatures.
• Result: After 8 years of continuous operation, these tanks show no signs of corrosion or liner degradation. The client reported a 75% reduction in maintenance costs related to acid storage and eliminated unscheduled downtime, demonstrating significant operational efficiency gains and improved safety compliance.

Case Study 2: Copper Mining Operation – Leaching Tanks

• Challenge: A large-scale copper mining operation experienced severe abrasion and chemical attack in their conventional steel leaching tanks handling highly abrasive copper slurry mixed with sulfuric acid. Tank life was less than 3 years.
• Solution: We engineered and installed large 150 m³ Rubber Lined Tanks with a thick, soft natural rubber lining (8mm) known for its superior abrasion resistance and excellent acid compatibility.
• Result: The new tanks have been in service for over 12 years with minimal wear. The client achieved a 400% increase in tank lifespan, drastically reducing capital expenditure on replacements and optimizing production uptime. This project also reduced the environmental footprint by minimizing material consumption.

Case Study 3: Municipal Wastewater Treatment Plant – Neutralization Basin

• Challenge: A municipal wastewater treatment facility needed to upgrade its equalization and neutralization basins, which were corroding due to variable pH levels and aggressive chemical dosing, posing structural risks.
• Solution: We provided several custom-fabricated Rubber Lined Tanks, utilizing a specialized EPDM rubber lining known for its excellent resistance to a broad range of chemicals, including oxidizers and varying pH conditions, and its UV stability for outdoor installation.
• Result: The tanks have successfully handled fluctuating wastewater chemistry for over 10 years without requiring internal repairs. The plant now operates with enhanced reliability, reduced operational risk, and compliance with all environmental discharge standards, underscoring the long-term value of a properly specified rubber lining.

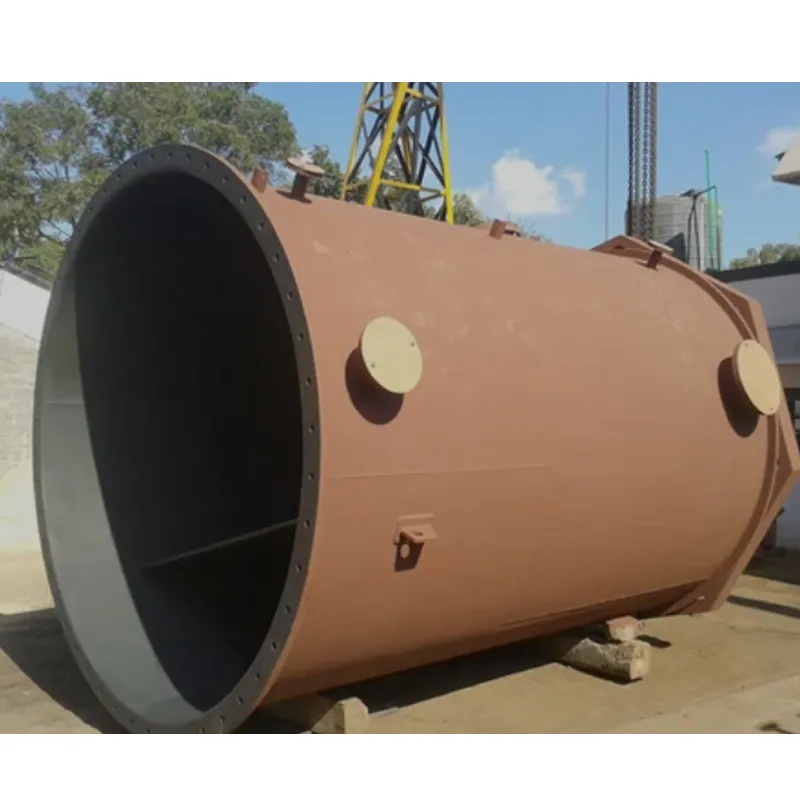

Completed industrial vessels, ready for deployment in demanding process environments.

Trust and Reliability: Our Commitment to Quality and Support

Building and maintaining trust with B2B clients is fundamental to our operations. Our commitment extends beyond the physical product, encompassing rigorous quality assurance, transparent processes, and comprehensive customer support for every Rubber Lined Tank we deliver.

Certifications and Quality Assurance:

We operate under a certified ISO 9001:2015 Quality Management System, ensuring that every stage of design, fabrication, and lining adheres to the highest international standards. Our pressure vessels are manufactured in compliance with ASME Boiler and Pressure Vessel Code (BPVC) Section VIII, Division 1, and our welding procedures and personnel are qualified to ASME Section IX. Furthermore, we adhere to NACE (National Association of Corrosion Engineers) standards for surface preparation and rubber lining application, providing verifiable authoritative references for our quality. Our extensive experience, with over two decades in the industry, and partnerships with leading chemical and mining companies globally, underscore our authority in specialized vessel fabrication.

Lead Time and Fulfillment:

Typical lead times for standard Rubber Lined Tank configurations range from 8-16 weeks, depending on complexity, volume, and current production schedules. Custom projects involving extensive engineering and specialized materials may require 16-24 weeks. We utilize advanced project management tools to provide real-time updates and maintain transparent communication from initial inquiry to final delivery. Our logistics team ensures secure and timely shipment, globally.

Warranty and After-Sales Support:

All our Rubber Lined Tank products are backed by a comprehensive 2-year warranty against manufacturing defects in materials and workmanship. This warranty covers the integrity of both the steel shell and the rubber lining under specified operating conditions. Our dedicated after-sales support team is available for technical consultations, troubleshooting, and guidance on maintenance and inspection protocols. We offer onsite inspection services, repair kits, and lining refurbishment advice to maximize the operational lifespan of your investment.

Frequently Asked Questions (FAQ)

Conclusion

The Rubber Lined Tank stands as a testament to advanced engineering in corrosion and abrasion control. Its specialized design and meticulous manufacturing process deliver unparalleled protection and extended operational life in the most aggressive industrial environments. From the careful selection of substrate materials and rubber compounds to the rigorous testing standards, every aspect is geared towards maximizing safety, efficiency, and cost-effectiveness. By embracing these technologically advanced containment solutions, industries can significantly reduce downtime, lower maintenance expenditures, and ensure robust compliance with environmental and safety regulations, securing their long-term operational integrity and profitability.

Authoritative References

1. NACE International (now AMPP) Standards: RP0178 – Fabrication, Inspection, and Repair of Lined Steel and Concrete Equipment.
2. ASME Boiler and Pressure Vessel Code (BPVC) – Section VIII: Rules for Construction of Pressure Vessels; Section IX: Welding, Brazing, and Fusing Qualifications.
3. ISO 9001:2015 – Quality management systems — Requirements.
4. ASTM International Standards – D429 (Adhesion), D471 (Chemical Resistance), D2240 (Hardness).
5. Schreier, R. (2000). Rubber Linings and Coatings: Their Application in Corrosion Protection. Industrial & Engineering Chemistry Research, 39(12), 4810-4819.
