Cyclone Separator

Structure and Working Principle

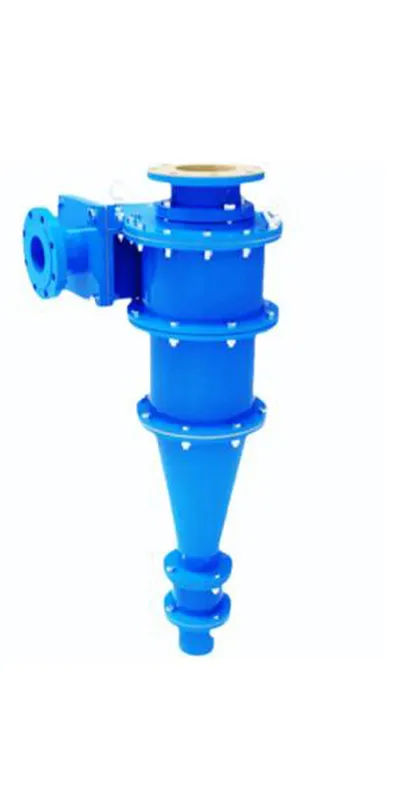

The cyclone separator consists of a cylindrical or conical chamber, an inlet for the contaminated gas or air, and separate outlets for the clean gas and collected particles. When the mixture enters the cyclone at high speed, it spirals downward along the chamber walls, creating a vortex. Centrifugal force pushes the heavier particles toward the outer wall, where they lose momentum and settle at the bottom of the chamber. The cleaned gas exits through a central outlet at the top, while the separated particles are collected in a hopper or bin.

Advantages

The main benefits of cyclone separators include their durability, ease of operation, and ability to handle high temperatures and corrosive environments.

They are highly effective in reducing environmental pollution by capturing particulate matter before it is released into the atmosphere.

Furthermore, their robust construction ensures long service life, even in harsh industrial conditions.

Key Features

1.
2. 1. High Efficiency: Cyclone separators can efficiently remove particles as small as 5 microns, depending on the design.
3.
   2. No Moving Parts:Their simple design minimizes mechanical wear and reduces maintenance needs.
4.
   3. Versatility: Suitable for separating dust, liquid droplets, or other solid particles from a gas stream.
5.
   4. Compact Design: Cyclone separators have a small footprint and can be easily integrated into existing systems.
6.
   5. Cost-Effective: They offer a low-cost solution for particle separation, requiring minimal energy compared to other filtration systems.

Cyclone separators are widely used in various industries:
- Mining and Quarrying: For separating dust from exhaust air or for classifying and concentrating ores.
- Cement Production:To remove fine particles from kiln exhaust gases.
- Agriculture: For separating chaff and dust from grains during processing.
- Chemical Processing: To separate catalysts, powders, or liquid droplets from gas streams.
- Environmental Engineering:For air pollution control, particularly in capturing dust and particulate matter from industrial emissions.

Cyclone separators are indispensable tools in modern industrial processes, providing efficient and cost-effective solutions for particle and droplet separation.

Their versatility, durability, and low-maintenance design make them a preferred choice in industries where clean air and material recovery are critical.

Investing in cyclone separators ensures improved operational efficiency, environmental compliance, and workplace safety.
