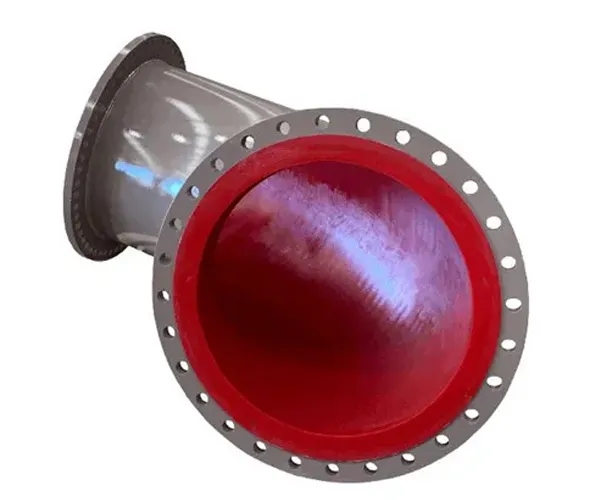

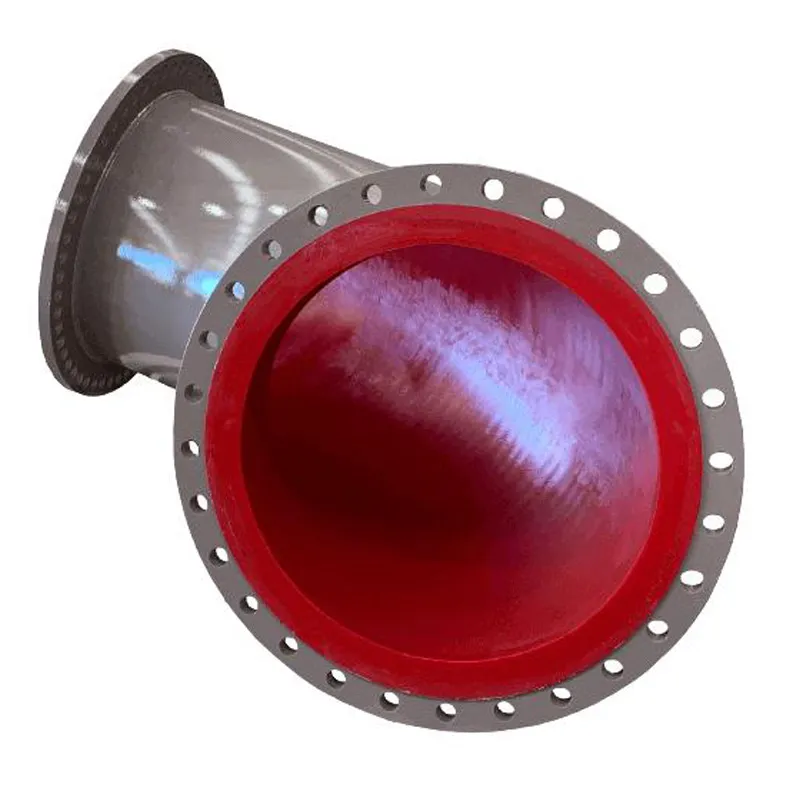

Polyurethane Lined Elbow Pipe

Polyurethane-lined elbow pipes are essential components in industrial pipeline systems, designed specifically to handle the transport of abrasive and corrosive materials. These elbow pipes are used to redirect material flow at various angles, such as 45°, 90°, or custom bends, making them crucial for efficient material movement in complex pipeline layouts. The addition of a polyurethane lining significantly enhances the pipe's durability, enabling it to withstand harsh operating conditions commonly found in industries such as mining, power generation, and chemical processing.

Send email to us > Download

Structure and Materials

The polyurethane-lined elbow pipe consists of two main components: a sturdy steel outer shell and an inner lining of polyurethane. The steel exterior provides mechanical strength and the ability to endure high-pressure applications, while the polyurethane lining delivers exceptional wear resistance, chemical stability, and impact absorption. The smooth, low-friction surface of the polyurethane lining also helps minimize material buildup and flow resistance, ensuring efficient operation.

Advantages

The use of polyurethane-lined elbow pipes reduces maintenance costs and system downtime by extending the service life of critical pipeline components.

The lining's durability minimizes wear and tear, ensuring consistent performance even under high-pressure and high-velocity conditions.

Key Features

1. Abrasion Resistance: Polyurethane’s high resistance to wear ensures the pipe remains functional even when transporting abrasive materials like slurry, sand, or mining byproducts.
2. Impact Resistance: The elastic nature of polyurethane absorbs shocks and impacts caused by high-speed particles, protecting the pipe from internal damage.
3. Corrosion Resistance: The polyurethane lining prevents chemical degradation caused by corrosive fluids or gases, enhancing the pipe's lifespan.
4. Reduced Noise and Vibration: The flexible and resilient lining dampens noise and vibration caused by material flow, improving the working environment.
5. Customizable Design: Polyurethane-lined elbow pipes can be manufactured to specific dimensions, angles, and lining thicknesses, allowing for seamless integration into existing systems.

Applications

Polyurethane-lined elbow pipes are widely used in:
- Mining: For transporting ore, slurry, and other abrasive materials in processing plants.
- Power Plants:In ash handling systems and other high-wear applications.
- Chemical Processing: For diverting corrosive or abrasive fluids.
- Water Treatment: To manage sediment-rich or corrosive flows in pipelines.

Conclusion

In summary, polyurethane-lined elbow pipes are indispensable in modern industrial operations, offering a combination of strength,

longevity, and versatility that ensures reliable performance in even the most challenging environments.
