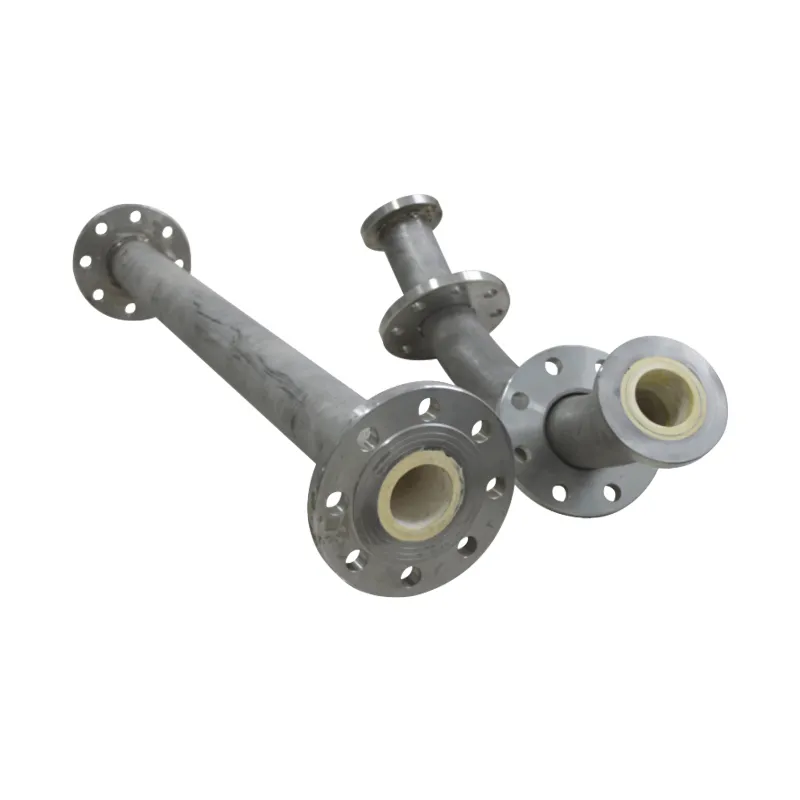

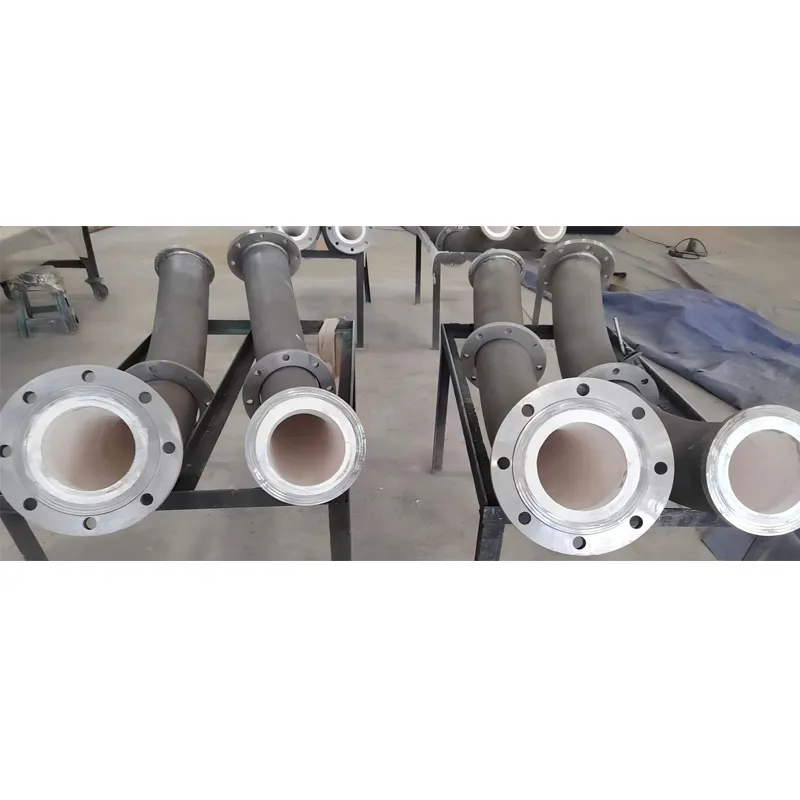

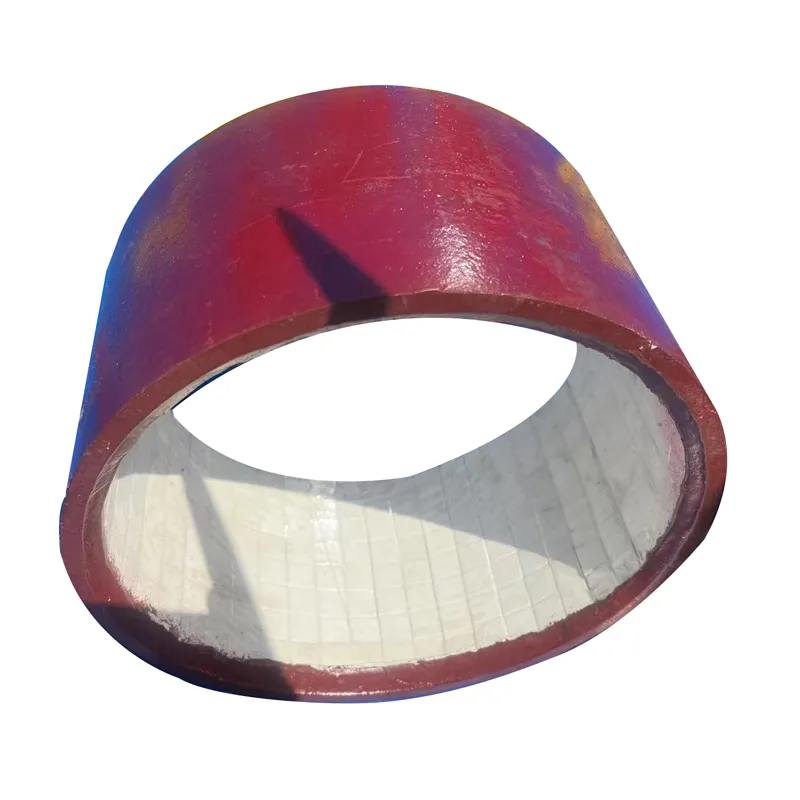

Ceramic Lined Steel Pipe

Product Overview

Ceramic lined steel pipes are composite pipelines that combine the high mechanical strength of carbon steel with the exceptional wear resistance of advanced ceramic materials, such as alumina ceramics. The ceramic lining is firmly bonded to the inner surface of the steel pipe, forming a highly durable and wear-resistant internal layer. Ceramic lined pipes are specifically designed for applications involving severe abrasion, erosion, and high-velocity particulate flow. Compared with conventional metal pipes, ceramic lined pipes offer significantly longer service life in abrasive environments, making them an ideal solution for harsh industrial conveying systems.

Key Features & Advantages

1. Outstanding Wear and Abrasion Resistance

Ceramic materials, especially high-alumina ceramics, provide extremely high hardness and superior resistance to abrasion and erosion, effectively extending pipeline service life.

2. Excellent Corrosion Resistance

Ceramic linings are chemically inert and resistant to most acids, alkalis, and corrosive media, ensuring stable performance in aggressive environments.

3. High Temperature Resistance

Ceramic lined pipes can operate at higher temperatures compared with polymer-lined pipes, making them suitable for high-temperature slurry and gas-solid conveying systems.

4. Smooth Inner Surface & Reduced Erosion

The dense and smooth ceramic surface minimizes turbulence, reduces material adhesion, and lowers erosion caused by high-speed particles.

5. Strong Mechanical Strength

The steel outer pipe provides excellent pressure-bearing capacity and structural strength, ensuring safe and reliable operation under demanding working conditions.

6. Long Service Life & Reduced Maintenance

The combination of ceramic lining and steel shell significantly reduces wear-related failures, lowering replacement frequency and maintenance costs.

7. Reliable Lining Fixation

Ceramic linings can be installed by adhesive bonding, welding, or interlocking methods, ensuring strong adhesion and long-term operational stability.

Applications

Ceramic lined pipes are widely used in industries where extreme abrasion and erosion resistance are required, including:

• Mining and mineral processing for slurry, tailings, and ore transportation
• Power plants for fly ash, bottom ash, and coal powder conveying systems
• Metallurgy and steel plants for sinter, coke, and ore fines transfer
• Cement plants for raw material and clinker transportation
• Coal chemical and petrochemical industries
• Pneumatic conveying systems for solid materials

Technical Specifications

• Diameter Range: DN25 – DN1200 (customizable upon request)
• Lining Material: Alumina ceramic (Al₂O₃ 92% / 95% or customized)
• Pipe Body: Carbon steel or stainless steel (SS304, SS316L)
• Working Pressure: Typically up to 2.5 MPa (higher pressure designs available upon request)
• Temperature Range: Up to 250°C (higher temperature solutions available upon request)
• Standard Length: 6 meters or customized according to project requirements

Conclusion

Ceramic lined pipes provide an ideal solution for severe wear and abrasion conditions where traditional metal or polymer-lined pipes fail rapidly. With excellent wear resistance, high temperature tolerance, and strong mechanical performance, ceramic lined pipes significantly improve system reliability and service life. They are a cost-effective and durable choice for mining, power generation, metallurgy, and other heavy-duty industrial applications.

Ceramic Lined Steel Pipe FAQ

What is a ceramic lined steel pipe used for?

Ceramic lined steel pipes transport highly abrasive materials like slurry, sand, or cement. The ceramic lining protects the steel from wear, ensuring long-term operation in mining, cement, and chemical industries.

How does ceramic lining improve pipe durability?

The ceramic lining provides superior abrasion resistance, preventing erosion from solids in the fluid. This greatly extends pipe life and reduces maintenance in industrial and mining applications.

Can ceramic lined pipes handle high-pressure pipelines?

3.Yes, steel pipes combined with ceramic lining can handle medium to high-pressure systems. The ceramic protects against wear while the steel provides structural strength for pressure resistance.

Which industries benefit from ceramic lined steel pipes?

Mining, cement, power plants, and chemical processing industries benefit from ceramic lined pipes. They are ideal for transporting abrasive slurries and chemicals while minimizing downtime and maintenance.

How to install ceramic lined steel pipes safely?

Avoid impact or dropping during installation. Use proper gaskets and avoid direct welding on the lining. Proper handling ensures the ceramic layer remains intact, maintaining abrasion protection.

Are ceramic lined pipes resistant to chemical corrosion?

Yes, most ceramic linings resist chemical attack from acids, alkalis, and slurry, providing excellent chemical stability while protecting the steel substrate from corrosion.

How long do ceramic lined steel pipes last?

Service life varies with abrasion and fluid type but generally exceeds unlined steel pipes. Proper installation and maintenance can give ceramic lined pipes several years of reliable performance in harsh conditions.

Can ceramic lined steel pipes be customized?

8.Yes, they can be customized in length, diameter, lining thickness, and steel grade. Customization ensures they meet specific industrial needs, maximizing abrasion resistance and operational efficiency.
